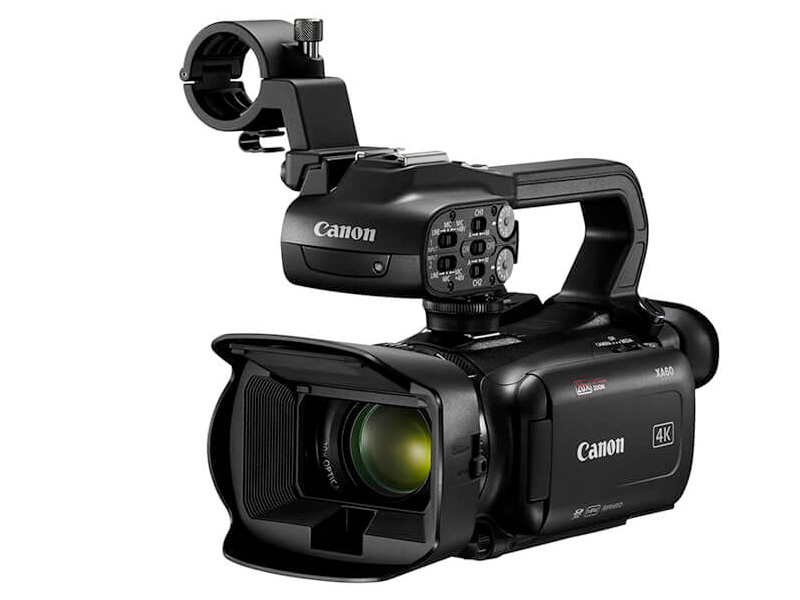

Canon XA60 Professional Camcorder

The professional XA60 features a 1/2.3” CMOS sensor and supports 4K UHD 25P recording with a wide 29.3mm angle of view as well as 20x optical zoom. Additionally, with the powerful image stabilization function achieved via it's Dynamic Mode and 8-Bladed Circular Aperture, you'll be able to achieve superb image quality every time.

Code: CAN/XA60

On Sale!

Specifications

Imaging

Sensor Type	1/2.3"-Type CMOS Sensor
Image Stabilization	Optical in Integrated Lens Digital
Capture Type	Video Only

Exposure Control

Shutter Type	Electronic Global Shutter
Shutter Speed	1/2000 to 1 Second
Gain	0 to 24 dB (Native)
Signal-to-Noise Ratio	3 dB
Minimum Illumination	5 Lux at 1/30 Shutter Speed 0.3 Lux at 1/2 Shutter Speed
White Balance	2000 to 15,000K

Lens

Focal Length	3.6 to 73.4mm (35mm Equivalent Focal Length: 29.3 to 627mm)
Optical Zoom Ratio	20x
Maximum Aperture	f/1.8 to 2.8
Minimum Focus Distance	Wide: 0.4" / 1.0 cm Entire Zoom Range: 23.6" / 60.0 cm
Control Rings	Focus Zoom
Focus Control	Autofocus Manual Focus
Internal Recording Modes	H.264/MP4/XF-AVC 3840 x 2160 at 23.98/24.00/29.97 fps [150 Mb/s] 1920 x 1080p at 23.98/24.00/29.97/59.94 fps [17 to 35 Mb/s] 1280 x 720 at 59.94 fps [8 Mb/s]
Broadcast Output	NTSC
Built-In Microphone Type	Stereo
Audio Recording	MP4: 2-Channel 16-Bit AAC Audio MP4: 4-Channel 16-Bit LPCM Audio
IP Streaming	None

Interface

Media/Memory Card Slot	Dual Slot: SD/SDHC/SDXC (UHS-I)
Video I/O	1 x Mini-HDMI 2.0 Output
Audio I/O	2 x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input 1 x 1/8" / 3.5 mm TRS Stereo Headphone Input 1 x 1/8" / 3.5 mm TRS Stereo Microphone Input
Power I/O	1 x USB-C Input
Other I/O	1 x USB-C

Monitor

Size	3.5"
Resolution	2,760,000 Dot
Display Type	Articulating Touchscreen LCD

Viewfinder

Type	Built-In Electronic (LCD)
Size	0.36"
Resolution	1,770,000 Dot

Focus

Focus Type	Auto and Manual Focus
Focus Mode	Automatic, Manual Focus

Environmental

Operating Temperature	32 to 72°F / 0 to 40°C (Recommended)
Storage Temperature	23 to 113°F / -5 to 45°C
Operating Humidity	85%
Storage Humidity	60%

General

Battery Type	Canon BP-8 Series
Tripod Mounting Thread	1/4"-20 Female
Accessory Mount	1 x Cold Shoe Mount on Included Handle
Dimensions (W x H x D)	7.2 x 4.3 x 3.3" / 18.3 x 10.9 x 8.4 cm (Without Protrusions)
Weight	1.6 lb / 740 g (Body Only) 2.5 lb / 1135 g (With Battery, Handle, Recording Media)
