Decimator (Redbyte) HDMI-SDI Bi-Directional Converter

Name: Decimator (Redbyte) HDMI-SDI Bi-Directional Converter
Brand: Decimator
SKU: DEC/MD-LX
Price: 131.8181 AUD
Availability: InStock

Code: DEC/MD-LX

$145.00

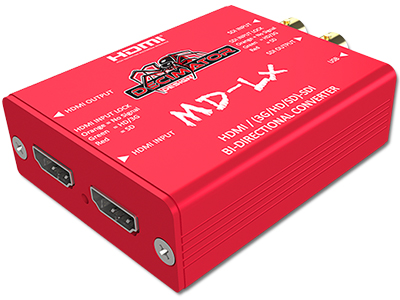

The DECIMATOR MD-LX is a pocket-sized (measuring 60mm x 73.7mm x 23mm) bi-directional converter featuring an HDMI input and output on one side and 3G/HD/SD-SDI input and output on the other. It supports up to 1080p60 resolution and offers multiple input/output conversion modes.

Add to Cart

Found this item cheaper elsewhere? Let us know

ENQUIRE NOW

In Stock

In stock - Ships in 1-2 days

Overview
Specifications

Features

Low power
USB provides for power, control and firmware upgrades
Supports 3G Level A and B and allows for conversion between both
HDMI and SDI input locks
Features the following modes:
- Auto Select (Active input to all outputs or if both inputs are active SDI to HDMI and HDMI to SDI)
- HDMI IN to SDI OUT
- SDI IN to HDMI OUT
- SDI IN to HDMI and SDI OUT
- HDMI IN to HDMI and SDI OUT

More Decimator Products

For more information on the full Decimator Design range, click here

Specifications

Input	1 x HDMI type A 1 x 3G/HD/SD-SDI 1 x Micro-USB port for power, control, and firmware updates
Output	1 x HDMI type A 1 x 3G/HD/SD-SDI
HDMI Format Support	1920 x 1080p 23.98/24/25/29.97/30/50/59.94/60 1920 x 1080i 50/59.94/60 1280 x 720p 25/29.97/30/50/59.94/60 625i 50 525i 59.94
SDI Format Support	3G-A or 3G-B: SMPTE 424M at 2.97 and 2.967 Gb/s 1080p 50/59.94/60 HD: SMPTE 292M/274M/296M at 1.485 and 1.435 Gb/s 1080p 23.98/24/25/29.97/30 1080PsF 23.98/24/25/29.97/30 1080i 50/59.94/60 720p 23.98/24/25/29.97/30/50/59.94/60 SD: SMPTE 259M at 270 Mb/s 625i 50 525i 59.94
Power	USB: 4.4 to 5.25 VDC Uses under 2.5 W
Dimensions	6 x 7.4 x 2.3 cm / 2.4 x 2.9 x 0.9"
