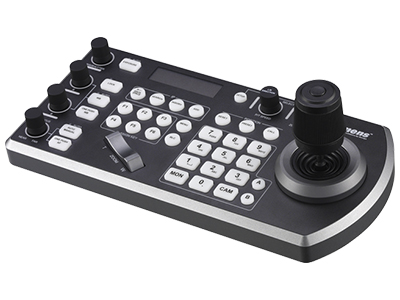

Lumens VS-KB30 IP Camera Controller

Code: COR/VS-KB30
$2,975.00
The VS-KB30 is a joystick IP Camera Controller that is able to control PTZ cameras. This accessory is suitable for easy operation and different camera adjustments with Sony VISCA protocol, Pelco P&D, VISCA Over IP, and ONVIF. With its auto backlight keypad display, the VS- KB30 is suitable for different environments.
Add to Cart

This item is already in your cart, click here to update quantities.

Found this item cheaper elsewhere? Let us know

ENQUIRE NOW

Got a question about this product?
Send us a message

Special Order Item

Usually ships in 1-2 weeks

Request ETA

What's In The Box?

  • Lumens VS-KB30 IP Camera Controller
  • Quick Installation Guide
  • AC Power Cord
  • Power Adapter
  • RJ45 to RS232/422 Adapter Cable
  • 3PIN to 2PIN Adapter

    • The VS-KB30 is a joystick IP Camera Controller that is able to control PTZ cameras. This accessory is suitable for easy operation and different camera adjustments with Sony VISCA protocol, Pelco P&D, VISCA Over IP, and ONVIF. With its auto backlight keypad display, the VS- KB30 is suitable for different environments.

    Features

    • Joystick for Pan / Tilt / Zoom
    • Quick access control of exposure, white balance, focus, PTZ speed, and 6 user- assignable keys
    • The RS-232C / RS-422 x2 / Ethernet control interfaces allow long-distance communication
    • Protocol by VISCA, VISCA Over IP, Pelco P&D, and ONVIF
    • Control up to total of 255 IP cameras on a single network with PoE support
    • Support NDI®|HX, fully compatible with NDI®|HX PTZ camera, including Lumens, NewTek and Marshall

    Specifications

    Comm. Interface RS-232, RS-422 x2 , Ethernet
    Display LCD
    Joystick 4-axis (Pan / Tilt / Zoom)
    Speed Control x2 (2 Knobs)
    Zoom Control x1 (Zoom Seesaw Lever)
    Gain Control R / B Gain (2 Knobs)
    Assign Button x6
    Keypad with backlight Yes
    Protocol VISCA, Pelco P&D, VISCA Over IP, ONVIF
    Baud Rate 2400, 4800, 9600, 19200, 38400 bps
    Camera Address 1~255
    Preset 255
    Power DC12V / PoE
    Power Consumption 8W
    Dimensions 278 x 132 x 99.5 mm
    Weight 1 kg
    Comm. Interface RS-232, RS-422 x2 , Ethernet
    Display LCD
    Joystick 4-axis (Pan / Tilt / Zoom)
    Speed Control x2 (2 Knobs)
    Zoom Control x1 (Zoom Seesaw Lever)
    Gain Control R / B Gain (2 Knobs)
    Assign Button x6
    Keypad with backlight Yes
    Protocol VISCA, Pelco P&D, VISCA Over IP, ONVIF
    Baud Rate 2400, 4800, 9600, 19200, 38400 bps
    Camera Address 1~255
    Preset 255
    Power DC12V / PoE
    Power Consumption 8W
    Dimensions 278 x 132 x 99.5 mm
    Weight 1 kg
