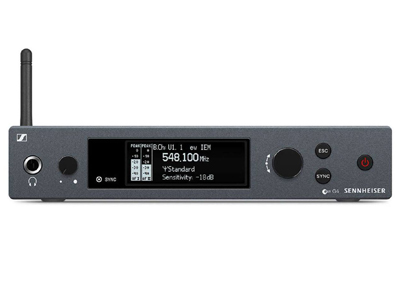

Sennheiser EW IEM G4 Wireless Transmitter - Half Rack (B: 626 - 668 MHz)

Name: Sennheiser EW IEM G4 Wireless Transmitter - Half Rack (B: 626 - 668 MHz)
Brand: Sennheiser
SKU: SEN/509620
Price: 745.4545 AUD
Availability: OutOfStock

Code: SEN/509620

$820.00

Half-rack stereo transmitter in a full-metal housing with OLED display for full control delivering clarity along the whole frequency spectrum for daily use on stage with evolution wireless G4 In Ear Monitoring systems.

Add to Cart

Found this item cheaper elsewhere? Let us know

ENQUIRE NOW

Out of Stock - Call for availability

Or get notified when back in stock

OK, we'll notify you when Sennheiser EW IEM G4 Wireless Transmitter - Half Rack (B: 626 - 668 MHz) is back in stock.

Overview
Specifications

What's In The Box?

1x SR IEM G4 stereo transmitter

1x rod antenna

1x GA 3 rackmount set

1x power supply

Key Features

Half-rack stereo transmitter in a full-metal housing with OLED display for full control
Easy and flexible wireless synchronization between transmitter and receiver via infrared
Compatible with Sennheiser WSM control software for flexible frequency allocation
Up to 16 compatible channels
Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
Transmission Range: up to 100 meters / 300 feet
High RF output power (up to 50 mW) depending on country regulations

SR IEM G4
Frequency range	B: 626 - 668 MHz
Dimensions	Approx. 202 x 212 x 43 mm
Compander	Sennheiser HDX
THD, total harmonic distortion	<0.9 %
Weight	Approx. 980 g
Audio input	2x XLR-3/¼" (6.3 mm) jack combo socket, electronically balanced
Audio output	¼" (6.3 mm) stereo jack socket, balanced
Signal-to-noise ratio	>90 dB
RF output power	switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
Switching bandwidth	up to 42 MHz
Peak deviation	±48 kHz
Nominal deviation	±24 kHz
Modulation	Wideband FM stereo (MPX pilot tone)
Power supply	12 V DC
Current consumption	max. 350 mA
Max. Input voltage	+22 dBu
Transmission frequency	Max. 1680 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels
AF frequency response	25 Hz to 15 kHz
Temperature Range	-10 °C to +55 °C
Frequency stability	±10 ppm
Antenna Output	BNC socket, 50 Ω
