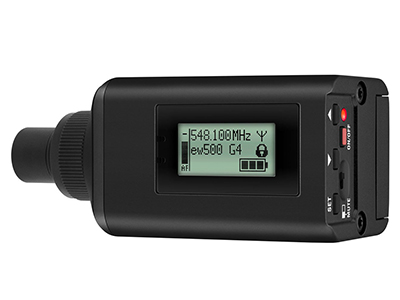

Sennheiser SKP 500 G4 Pro Wireless Plug-On Transmitter (GBw: 606 - 678 MHz)

Code: SEN/509899

$685.00

The Sennheiser SKP 500 G4 Plug-On Transmitter is a powerful plug-on transmitter that turns every wired dynamic or condenser microphone into a wireless transmitter for wireless G4 500 Series systems. Note: GBw Block covers 606 to 678 MHz. Be sure to check the Sennheiser Frequency Finder for the best range to cover your needs!

Add to Cart

Found this item cheaper elsewhere? Let us know

ENQUIRE NOW

Low Stock

Limited Stock - Call for availability

Overview
Specifications

What's In The Box?

SKP 500 G4 pro plug-on transmitter

POP 1 pouch with belt clip

The Sennheiser SKP 500 G4 Plug-On Transmitter is a powerful plug-on transmitter that turns every wired dynamic or condenser microphone into a wireless transmitter for wireless G4 500 Series systems. When paired with a dynamic microphone and portable receiver (sold separately) it provides pro-quality wireless performance. Power is supplied to the transmitter by two AA batteries.

Features

Professional sound and excellent construction quality
Easy to use and fast setup time
Easy and flexible wireless synchronisation between transmitter and receiver via infrared
Up to 88 MHz bandwidth, up to 32 channels
Range: up to 100 meters / 330 feet
Increased RF output power (10/30/50 mW)
Up to 8 hours of operation time
With 48 V phantom powering

Specifications

Frequency range	GBw: 606 - 678 MHz
Dimensions	Approx. 105 x 43 x 43 mm
Compander	Sennheiser HDX
THD, total harmonic distortion	≤ 0.9 %
Weight	(incl. batteries) approx. 195 g
Signal-to-noise ratio	≥ 120 dBA
RF output power	switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
Switching bandwidth	up to 88 MHz
Peak deviation	±48 kHz
Nominal deviation	±24 kHz
Operating time	Typically 8 h
Modulation	Wideband FM
Power supply	2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption	at nominal voltage: typ. 210 mA with transmitter switched off: ≤ 25 μA
Input impedance	68 kΩ, unbalanced
Max. Input voltage	6 Veff
Powering	3 V battery / 2.4 V rechargeable battery
Transmission frequency	Max. 3520 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels
AF frequency response	80 – 18,000 Hz
Temperature Range	-10 °C to +55 °C
