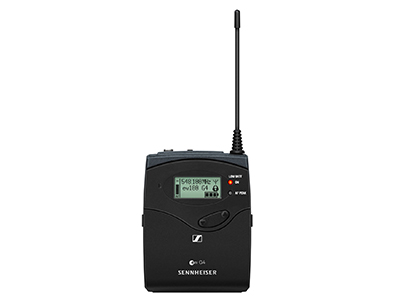

Sennheiser SK 100 G4 Wireless Bodypack Transmitter (B: 626 - 668 MHz)

Code: SEN/509503

$410.00

The SK 100 G4 Wireless Bodypack Transmitter is a robust bodypack transmitter for daily use with evolution wireless G4 100 systems. Note: B Block covers 626 to 668 MHz. Be sure to check the Sennheiser Frequency Finder for the best range to cover your needs!

Add to Cart

Found this item cheaper elsewhere? Let us know

ENQUIRE NOW

Out of Stock - Call for availability

Or get notified when back in stock

OK, we'll notify you when Sennheiser SK 100 G4 Wireless Bodypack Transmitter (B: 626 - 668 MHz) is back in stock.

Overview
Specifications

The SK 100 G4 Wireless Bodypack Transmitter is a robust bodypack transmitter for daily use with evolution wireless G4 100 systems. It features true diversity technology and can be used when paired with a companion receiver and microphone as part of a wireless RF transmission system. The transmitter's menu-driven backlit display shows current frequency, frequency band and channel number, metering of AF level, transmission status, battery status, and more.

Furthermore, the transmitter is equipped with a mute switch and is powered by two 1.5V AA size batteries or by one Sennheiser BA 2015 rechargeable accupack. It is built with a rugged, lightweight metal housing. The SK 100 G4 transmitter will operate about 8 hours and is equipped with a 1/8" line/mic input jack. With 25 Hz to 18 kHz AF frequency response, the SK 100 G4 is designed to deliver a natural audio quality.

Features

Robust bodypack transmitter for daily use on stage.
Easy and flexible wireless synchronization between transmitter and receiver via infrared
Fast frequency allocation for up to 12 receivers via new linking functionality
Up to 20 compatible channels
Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
Transmission Range: up to 100 meters / 300 feet
High RF output power (up to 30 mW) depending on country regulations

Kit Includes

SK 100 G4 bodypack transmitter
2 AA batteries
Quick guide
Safety guide
Manufacturer declaration sheet

Specifications

Frequency range	B: 626 - 668 MHz
Dimensions	Approx. 82 x 64 x 24 mm
Compander	Sennheiser HDX
THD, total harmonic distortion	≤ 0.9 %
Weight	(incl. batteries) approx. 160 g
Signal-to-noise ratio	≥ 110 dBA
RF output power	Max. 30 mW
Switching bandwidth	up to 42 MHz
Peak deviation	±48 kHz
Nominal deviation	±24 kHz
Operating time	Typically 8 h
Modulation	Wideband FM
Power supply	2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption	at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 μA
Input impedance	40 kΩ, unbalanced / 1 MΩ
Max. Input voltage	3 Veff
Powering	3 V battery / 2.4 V rechargeable battery
Transmission frequency	Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
AF frequency response	Mic: 80 – 18,000 Hz Line: 25 – 18,000 Hz
Temperature Range	-10 °C to +55 °C
Frequency stability	≤ ±15 ppm
