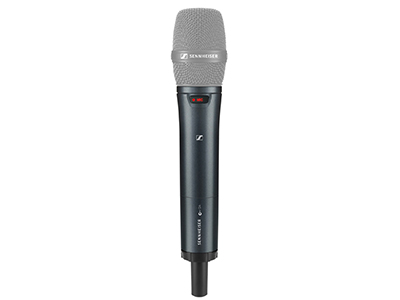

Sennheiser SKM 100 G4-S Handheld Transmitter (B: 626 - 668 MHz)

Code: SEN/509752

$410.00

The Sennheiser SKM 100 G4-S Handheld Transmitter is a powerful handheld transmitter with a lightweight aluminum housing and integrated mute switch. Microphone capsule is available separately Note: B Block covers 626 to 668 MHz. Be sure to check the Sennheiser Frequency Finder for the best range to cover your needs!

Add to Cart

Found this item cheaper elsewhere? Let us know

ENQUIRE NOW

Out of Stock - Call for availability

Or get notified when back in stock

OK, we'll notify you when Sennheiser SKM 100 G4-S Handheld Transmitter (B: 626 - 668 MHz) is back in stock.

Overview
Specifications

What's In The Box?

SKM 100 G4-S handheld transmitter

MZQ 1 microphone clamp

2 AA batteries

Quick guide

Safety guide

The Sennheiser SKM 100 G4-S Handheld Transmitter is a powerful handheld transmitter with a lightweight aluminum housing and integrated mute switch. It's intended for use with the G4 series of wireless receivers and a microphone capsule (available separately). The transmitter features infrared-sync, for quick and easy channel syncing between the transmitter and receiver. It is built with a lightweight and rugged aluminum housing and delivers pristine audio reproduction of both speech and performance vocals. Two AA batteries power the transmitter.

Features

Sleek design and fully compatible with all previous series
Improved User Interface: High-contrast LCD display and a dedicated escape button
Lightweight: Aluminum housing SKM handheld transmitter
Added functionality: Programmable mute switch added to SKM handheld transmitter
1680 tunable frequencies within 1785-1800 MHz range for interference-free reception
Enhanced frequency bank system with up to 12 compatible channels
Pilot tone squelch for eliminating RF interference when transmitter is turned off
Enhanced AF frequency range
Increased range for audio sensitivity
Wireless synchronization of transmitter via infrared interface
User-friendly menu operation with more control options
High-contrast LCD display
Auto-Lock function avoids accidental changing of settings
HDX compander for crystal-clear sound
Transmitter features battery indication in 4 steps
Handheld transmitter compatible with easy-exchangeable microphone capsules from evolution series
Contacts for recharging BA 2015 accupack battery directly in the transmitter
Wide range of accessories adapts the system to any requirement

Specifications

Frequency range	B: 626 - 668 MHz
Dimensions	Approx. Ø 50 x 265 mm
Compander	Sennheiser HDX
THD, total harmonic distortion	≤ 0.9 %
Weight	(incl. batteries) approx. 450 g
Signal-to-noise ratio	≥ 110 dBA
RF output power	Max. 30 mW
Switching bandwidth	up to 42 MHz
Peak deviation	±48 kHz
Nominal deviation	±24 kHz
Operating time	Typically 8 h
Modulation	Wideband FM
Power supply	2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption	at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 μA
Input impedance	40 kΩ
Max. Input voltage	3 Veff
Powering	3 V battery / 2.4 V rechargeable battery
Transmission frequency	Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
AF frequency response	80 – 18,000 Hz
Temperature Range	-10 °C to +55 °C
Frequency stability	≤ ±15 ppm
